Q#1 Sequential Circuits GATE EC 2020 NAT +2 marks -0 marks

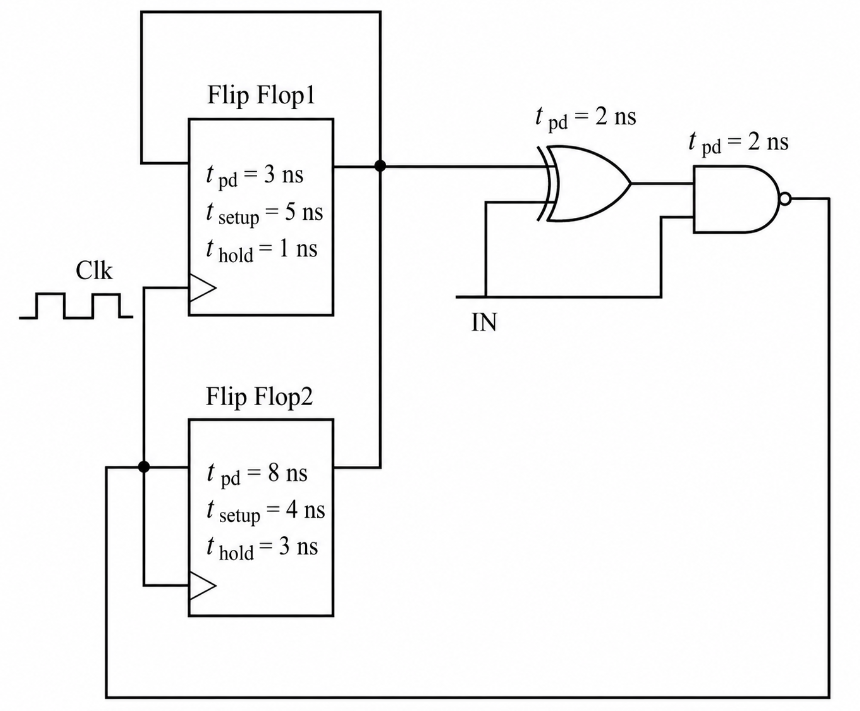

For the components in the sequential circuit shown below, $\scriptstyle t_{pd}$ is the propagation delay, $\scriptstyle t_{setup}$ is the setup time, and $\scriptstyle t_{hold}$ is the hold time. The maximum clock frequency (rounded off to the nearest integer), at which the given circuit can operate reliably, is __________ MHz.
